Switch-Pros Bezel Style 8-Switch Panel Power System SP-9100

Switch-Pros SP-9100 8-Switch Panel Power System | Solid-State Off-Road Accessory Controller | 125A Module with Bluetooth App Control

Compact, powerful, and fully customizable — the ultimate off-road switch system.

The Switch-Pros SP-9100 is the professional-grade 8-switch panel power system trusted by off-road racers, overlanders, and trail builders. With a waterproof 125A solid-state power module and full Bluetooth programmability, this off-road switch controller replaces bulky relay boxes and eliminates fuses, giving you a reliable, compact solution for running lights, compressors, radios, fans, and more.

With four 35A circuits and four 18A circuits, plus built-in strobe/flash functions, dimming, time-delay, and master control modes, the SP-9100 gives you total flexibility—whether building a full desert race truck, rock crawler, chase rig, or adventure build.

🔧 Key Features:

• 8 programmable outputs – 4 x 35A + 4 x 18A solid-state circuits

• Waterproof 125A solid-state power module

• RGB backlit switch panel – unlimited color options to match factory dash

• Full Bluetooth App Control – Apple + Android compatible

• Master mode, strobe, flash, dimming, momentary, ignition or battery input

• Automatic power-up, sleep mode, time-delay off, memory recall

• No fuses or relay box required

• Daisy-chain up to 3 switch panels per power module

• External trigger inputs – Active Hi or Low activation of 4 outputs per input

• Easy troubleshooting – built-in LED status indicators

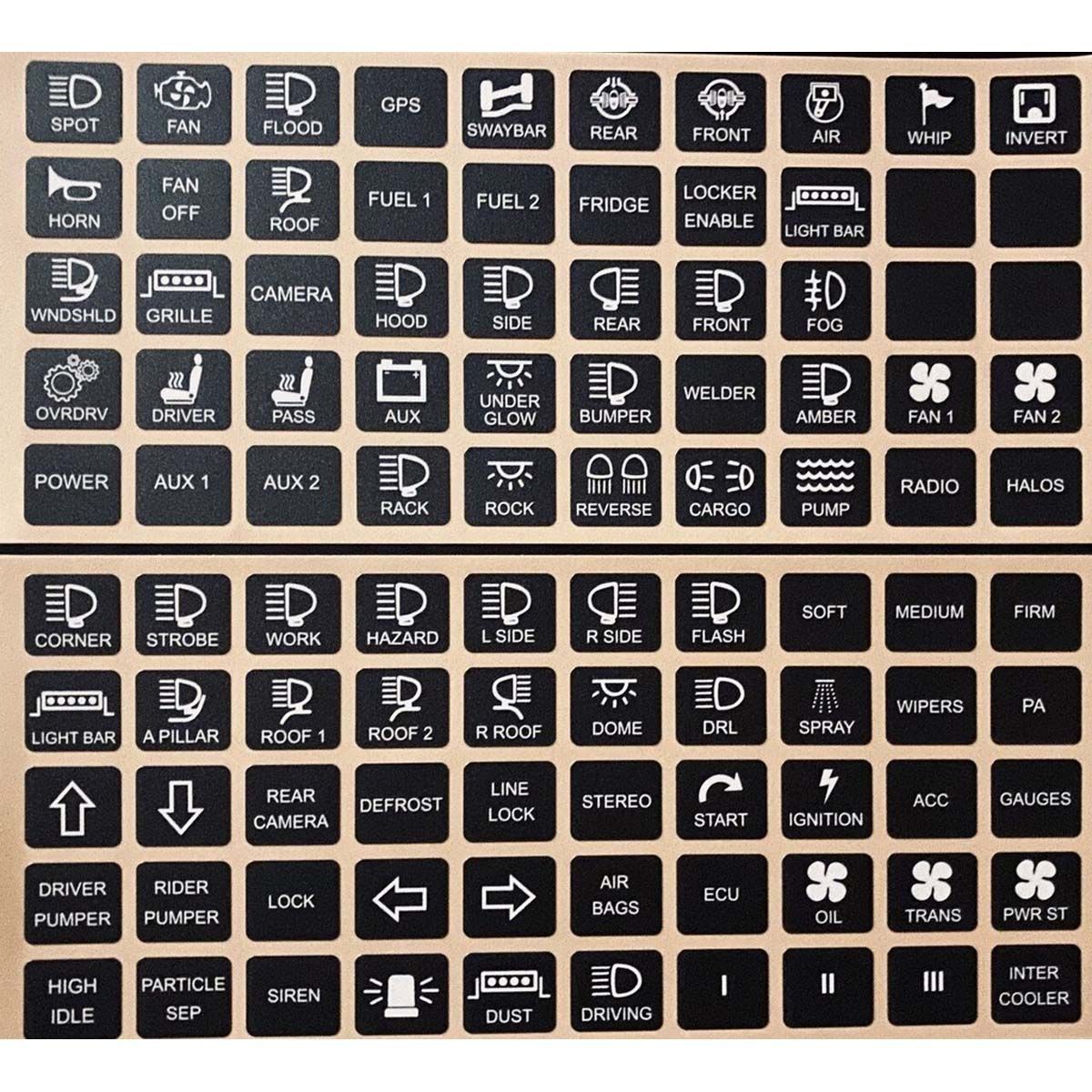

• Includes 100 user-selectable switch legends

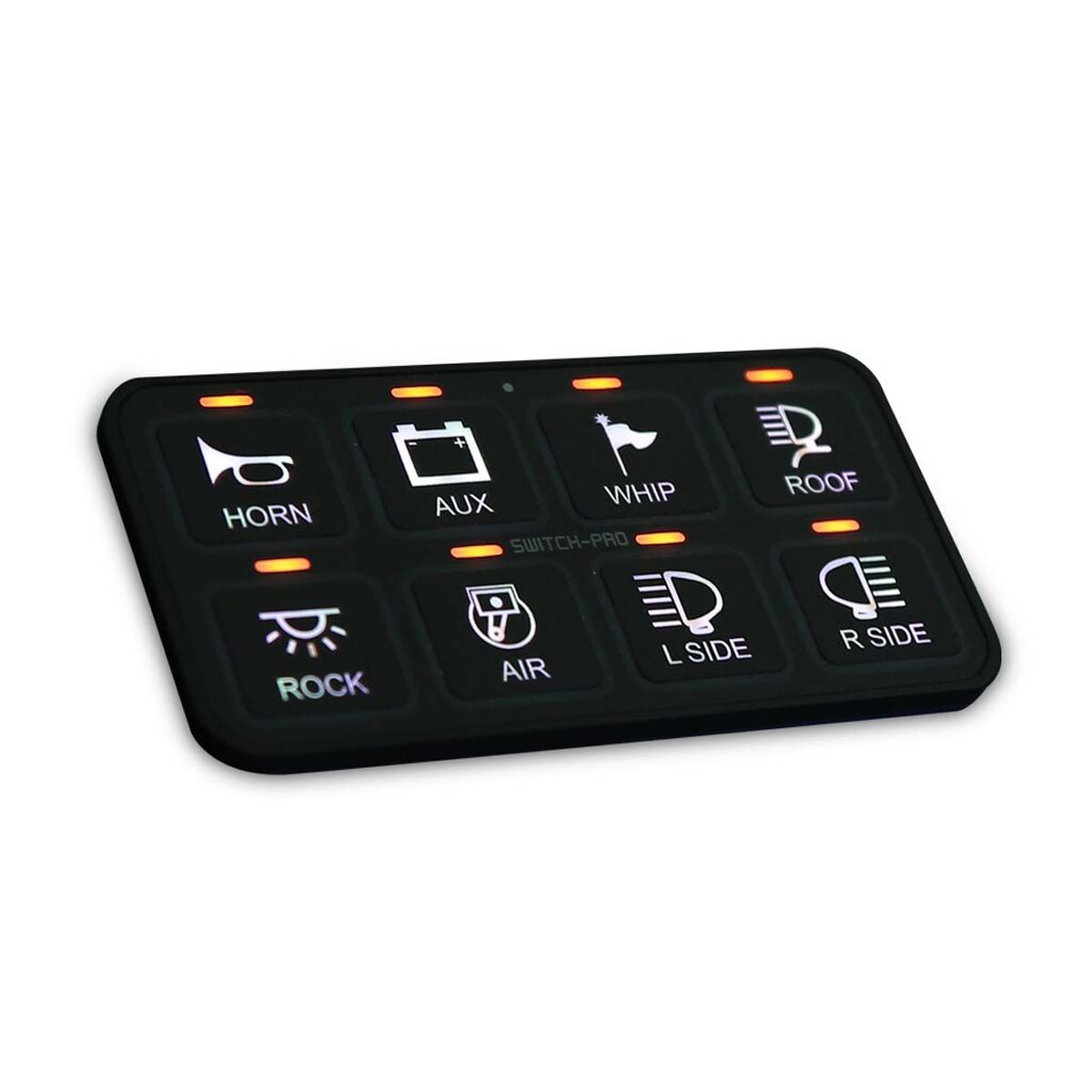

Panel Specs:

• RGB backlighting – full color match to your dash

• Panel size: 4” L x 2” W x .375” H (bezel style)

• Orange LED indicators

• Splash-proof, polycarbonate overlay

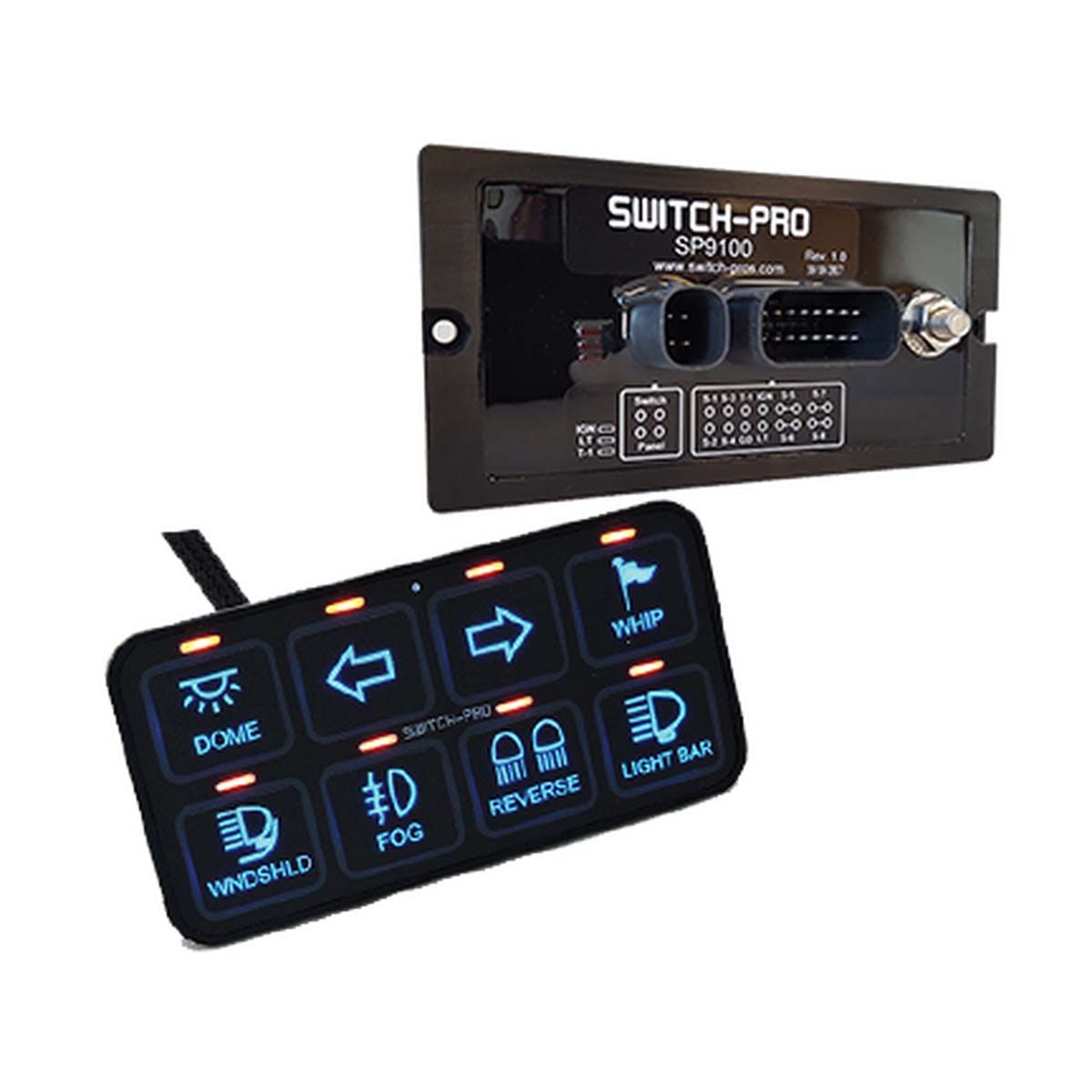

Power Module Specs:

• 8 outputs – 4 x 35A, 4 x 18A

• Max 125A system rating

• Underhood rated (-40° to 125°C)

• Compact housing: 6” L x 3” W x 0.5” H (excluding connectors)

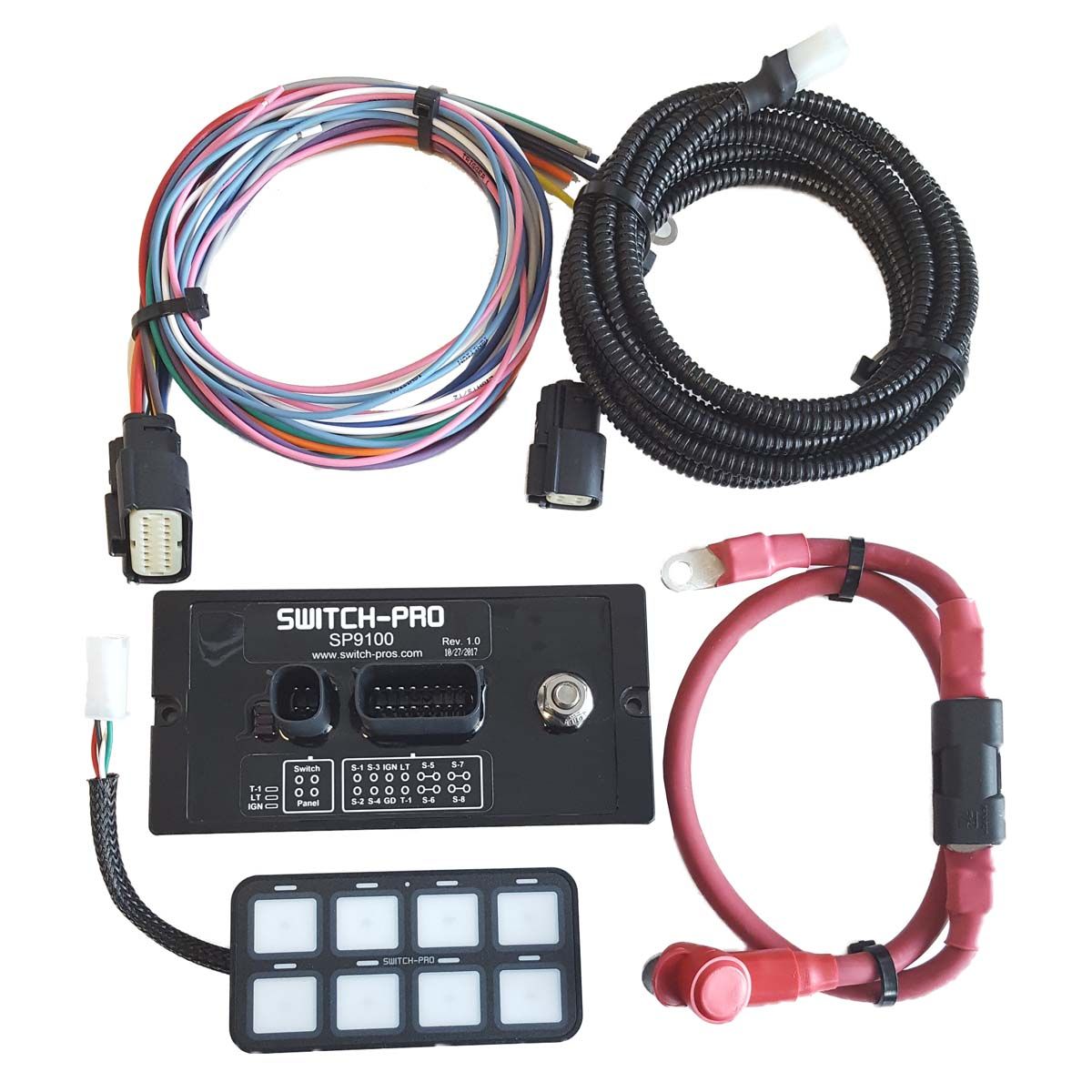

Kit Includes:

• 11’ communication cable

• Color-coded output wires

• Wire harness with waterproof connectors

• Power cable with 125A inline fuse

• 100 switch legends

• Free Bluetooth app

Ideal For:

• Desert race trucks & Ultra4 rigs

• Overland vehicles & expedition builds

• Chase trucks & off-road support vehicles

• Rock crawlers & Jeep builds

• Custom UTV & SxS electrical systems

Why Buy from Fenix Motorsports?

✅ Free shipping on orders $100+
✅ Same-day shipping on in-stock items
✅ 30-day hassle-free returns
✅ Trusted supplier of off-road electronics and race-grade accessory systems
✅ Expert advice from experienced builders and racers

Ditch the fuses. Drop the relays. Run your entire build with a single SP-9100 Switch-Pros system from Fenix Motorsports.
