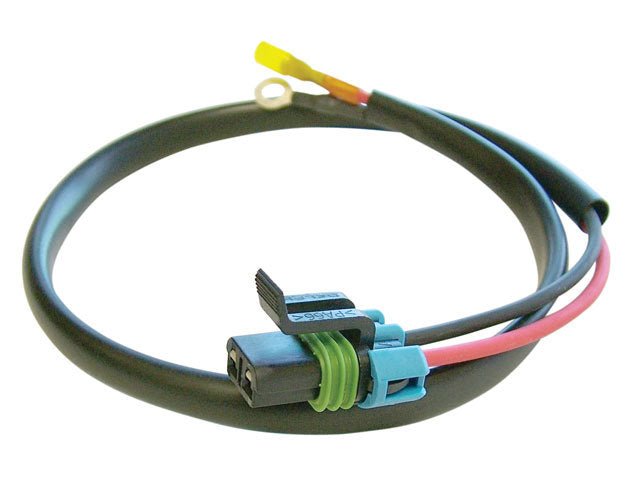

SPAL Fan Pigtail For Use With 30102113 & 30102130 Fans

SPAL Electric Fan Jumper Wiring Harness Pigtail

OEM-Grade Power Delivery for SPAL High-Performance Fans

When it comes to wiring high-output electric fans, reliability and clean connections are everything. The SPAL Electric Fan Jumper Wiring Harness Pigtail delivers plug-and-play simplicity with OEM-quality performance. Designed specifically for SPAL fans that use Metric-Pack style connectors, this harness provides a secure electrical interface capable of handling high current draw from SPAL’s most demanding cooling systems.

Compatible with SPAL 16" Extreme Performance fans and Dual 12" High Performance fan assemblies, this jumper harness ensures consistent current transfer, reduced resistance, and long-term durability under heat and vibration. Whether you’re upgrading your cooling system or building a new wiring harness from scratch, this pigtail simplifies installation while maintaining the quality SPAL is known for.

Built for Reliability

SPAL’s wiring components are designed to meet the same standards as their legendary fans — robust, consistent, and built to perform under the most demanding conditions. Each connector is manufactured to OEM-tier specifications, featuring high-temperature wiring, sealed connections, and corrosion-resistant terminals.

The pre-terminated Metric-Pack connector ensures a perfect fit with compatible SPAL fan motors, providing a watertight seal that resists moisture intrusion and vibration fatigue. With the included heavy-gauge wiring, this harness minimizes voltage drop and maximizes fan efficiency — a small component that makes a major difference in system performance.

Technical Specifications

Key Features

• Direct SPAL Compatibility: Designed specifically for fans equipped with Metric-Pack connectors — no splicing or modification needed.

• High-Temperature Rated Wiring: Withstands extreme under-hood conditions for long-term reliability.

• OEM-Grade Connectors: Fully sealed Metric-Pack terminals prevent corrosion and maintain consistent power delivery.

• Simplified Installation: Plug-and-play harness eliminates wiring guesswork and ensures correct polarity.

• Heavy-Duty Construction: Supports the current load of SPAL’s 16" Extreme and Dual 12" fan systems.

• Clean, Professional Finish: Ideal for performance and race vehicle wiring harnesses where reliability and appearance matter.

• Engineered by SPAL: Trusted by OEMs and motorsport teams worldwide.

Application

The SPAL Electric Fan Jumper Wiring Harness Pigtail is designed for builders and enthusiasts who demand professional-grade reliability in their cooling system wiring. This harness connects directly to SPAL fans using the Metric-Pack style connector — commonly found on:

• SPAL 16" Extreme Performance Fans

• SPAL Dual 12" High Performance Fans

It’s perfect for use in:

• Performance cars and trucks

• Off-road builds and race vehicles

• Aftermarket cooling conversions

• Custom wiring harness fabrication

While it’s not a universal connector, it’s the correct and recommended solution for any compatible SPAL fan setup.

Installation Notes

Installation is straightforward — simply connect the Metric-Pack plug to your SPAL fan motor, and integrate the open wire ends into your vehicle’s power and relay circuit. The pigtail’s heavy-gauge wire ensures reliable current flow for continuous-duty fans.

⚙️ Installation Tips:

• Always use a properly fused 12V relay circuit for fan operation.

• Verify polarity before powering the circuit to prevent motor damage.

• Use heat-shrink tubing or sealed connectors to protect your harness from moisture.

Why Choose SPAL

SPAL Automotive has built its reputation on precision-engineered, race-proven cooling solutions. From OEM applications to Formula-level motorsport, SPAL products are known for their exceptional reliability and long service life. This wiring pigtail embodies that same commitment — a small but essential link in a high-performance cooling system.

When used with a SPAL fan and relay, it ensures consistent operation, clean power delivery, and long-term reliability even under extreme thermal and vibration loads.
