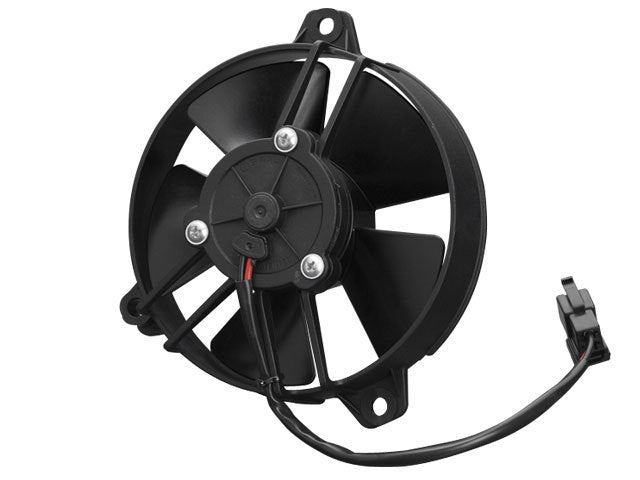

SPAL 5.2" 342 CFM Paddle Blade Low-Profile Puller Fan | Model 30103011
SPAL 5.2" 342 CFM Paddle Blade Low-Profile Puller Fan | Model 30103011
β Free Ground Shipping over $350
π Safe, Encrypted Payments
π Trusted, Customer-Approved Seller for our Aftermarket Brands
π Free Ground Shipping on Orders over $350
Couldn't load pickup availability
Compact Cooling. SPAL Precision.
When space is limited but cooling performance canβt be compromised, the SPAL 30103011 5.2-inch Paddle Blade Puller Fan delivers dependable airflow in a low-profile package. Moving up to 342 CFM, this compact 12V electric fan is built for tight installations β from auxiliary oil coolers to compact radiators and transmission cooling systems β where reliability, airflow, and build quality matter.
Designed and manufactured in Italy, this SPAL low-profile puller fan offers the same engineering pedigree trusted in professional motorsport and OEM applications around the world.
Designed for Tight Spaces
The 30103011 Paddle Blade Fan features a slim 2.05-inch depth and compact 5.2-inch diameter, allowing it to fit into confined engine bays, chassis-mounted cooler systems, or side-mount intercooler setups. The paddle-style blades generate balanced, efficient airflow while maintaining low noise levels and minimizing current draw.
A sealed IP68-rated motor ensures protection against dust, water, and debris β ideal for harsh off-road, racing, and high-performance environments. Each fan is dynamically balanced and factory-tested, ensuring smooth operation and long service life.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer: | SPAL Automotive S.p.A. |
| Model Number: | 30103011 |
| Fan Type: | Puller (Rear-Mount Configuration) |
| Blade Diameter: | 5.2 in (132 mm) |
| Airflow Rating: | 342 CFM @ 13.5 V |
| Motor Type: | Standard 12 V DC Sealed Motor |
| Blade Style: | Paddle Blade (5 Blades) |
| Housing Material: | Reinforced Plastic |
| Depth: | 2.05 in (52 mm) |
| Weight: | 1.25 lb (0.57 kg) |
| CFM Type: | Free-Air Flow |
| Polarity: | Puller |
| Mounting Hardware: | Sold Separately |
| Finish: | Black |
| Quantity: | Sold Individually |
Key Features
-
342 CFM Airflow: Delivers consistent, high-efficiency cooling in compact applications.
-
Low-Profile Design: At just 2.05 inches deep, ideal for tight-fit engine bays or cooler mounts.
-
Paddle Blade Efficiency: Smooth, stable airflow with minimal noise.
-
Sealed IP68 Motor: Fully dustproof and waterproof for long-term durability.
-
Precision Balanced: Each fan tested for vibration-free operation.
-
Universal Application: Suited to oil coolers, transmission coolers, or compact radiators.
-
SPAL Build Quality: OEM-level design and reliability trusted worldwide.
Recommended Applications
-
Auxiliary oil or transmission cooler systems
-
Compact radiator or heat exchanger setups
-
Power steering cooler systems
-
Electric conversion cooling systems
-
UTV, off-road, and motorsport auxiliary airflow
Installation Notes
The SPAL 30103011 is a puller fan that mounts behind the radiator or cooler to pull air through the core. It can also be used as part of a multi-fan configuration for additional airflow control.
βοΈ Installation Tips:
-
Use a fused 12V circuit with relay control for reliable operation.
-
Ensure airflow direction matches system design (puller = mounted behind core).
-
For optimal results, pair with SPALβs FRH Relay Harness Kit or FR-PT15300265 Pigtail Harness.
-
Avoid direct obstruction to maintain efficiency and reduce noise.
