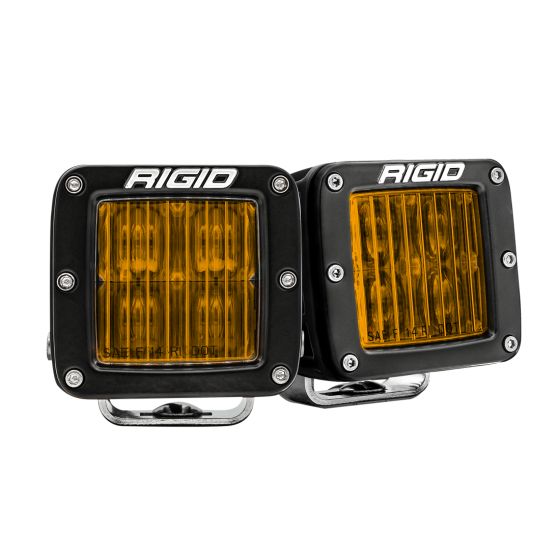

Rigid Industries D-Series Pro SAE Fog Yellow LED Pods – Surface Mount (Part #504816)
Rigid Industries D-Series Pro SAE Fog Yellow LED Pods – Surface Mount (Part #504816)
✔ Free Ground Shipping over $100
🔒 Safe, Encrypted Payments
↩️ Easy Returns Within 30 Days
🕒 Ships Same Day if ordered before 2pm MST
🏁 Trusted, Customer-Approved Seller for our Aftermarket Brands
🚚 Free Ground Shipping on Orders over $100
Couldn't load pickup availability
Conquer fog and rain with Rigid’s D-Series Pro SAE Fog Yellow LEDs (Part #504816). 3,445 lumens, selective yellow lens, legal for road use. IP68 rated and made in the USA.
Stay safe and visible in any weather with the Rigid Industries D-Series Pro SAE Fog Yellow Surface Mount LED pods (Part #504816). Engineered for both on-road legality and harsh off-road conditions, these compact 3” x 3” LED pods deliver the proven performance of Rigid’s D-Series Pro lineup, now enhanced with a selective yellow lens.
Yellow light cuts through fog, rain, snow, and dust more effectively than white light, reducing glare and eye strain while improving contrast in poor visibility. That makes these SAE fog lights perfect for drivers who demand the ultimate edge in challenging conditions while staying street legal under SAE J583 regulations.
Each D-Series Pro SAE Fog Yellow pod produces 3,445 raw lumens with a wide 60.5° horizontal beam angle, projecting light up to 137 meters (449.5 feet) at 1 lux. Despite the impressive output, each pod draws only 40 watts and 2.86 amps.
Housed in rugged black powder-coated aluminum, these lights are fully IP68 rated for dust and water resistance and tested to withstand intense vibration and shock from off-road driving. The surface mount design allows easy installation on trucks, UTVs, Jeeps, or custom builds.
Backed by Rigid’s limited lifetime warranty and proudly made in the USA, the D-Series Pro SAE Fog Yellow Surface Mount LED pods (Part #504816) offer race-proven reliability and the ultimate advantage in low-visibility driving.
Tech Specs
| Specification | Details |
|---|---|
| Part Number | 504816 |
| Size | 3″ x 3″ |
| Weight | 1.80 lbs |
| Optics | SAE Fog (Yellow) |
| Raw Lumens | 3,445 lm |
| Wattage | 40 W |
| Amp Draw (@14V) | 2.86 A |
| Lux @ 10 meters | 187.7 lux |
| Beam Distance @ 1 lux | 137 meters (449.5 ft) |
| Beam Distance @ 0.25 lux | 274 meters (899 ft) |
| Peak Beam Intensity | 18,770 cd |
| Horizontal Beam Angle | 60.5° |
Features:
- SAE J583 compliant for legal on-road fog light use
- Selective yellow lens for superior performance in fog, rain, snow, and dust
- Surface mount design for versatile installation
- Black powder-coated aluminum housing
- IP68 dust and water resistance
- Shock and vibration resistant
- Compact 3″ x 3″ footprint
- Made in the USA
- Limited Lifetime Warranty
Dominate the worst weather with the Rigid D-Series Pro SAE Fog Yellow Surface Mount LED pods (Part #504816) — the ultimate combination of street-legal performance and off-road durability.
-
Are the Rigid D-Series Pro SAE Fog Yellow lights street legal?
Yes! The D-Series Pro SAE Fog Yellow lights (Part #504816) are fully SAE J583 compliant, making them legal for on-road use as fog lights in most states. Always check local regulations.
-
Why choose a yellow fog light over white?
Selective yellow light reduces glare and improves contrast in fog, rain, and snow. It’s easier on the eyes and helps you see better in poor weather conditions.
-
How bright are these lights?
Each light produces 3,445 raw lumens, providing excellent illumination while staying safe for on-road use under SAE standards.
-
Do these lights come with a wiring harness?
Yes. Rigid typically includes a wiring harness and switch with D-Series Pro pairs. Always check your kit contents before installing.
-
Can I use these off-road as well?
Absolutely. While they’re street-legal, the D-Series Pro SAE Fog Yellow lights are rugged enough for harsh off-road conditions.
-
Are these lights waterproof?
Yes! They’re fully IP68 rated for dust and water protection, ready for tough conditions on and off the road.
-
Where are Rigid D-Series Pro SAE Fog Yellow lights made?
They’re proudly made in the USA and backed by Rigid’s limited lifetime warranty.
