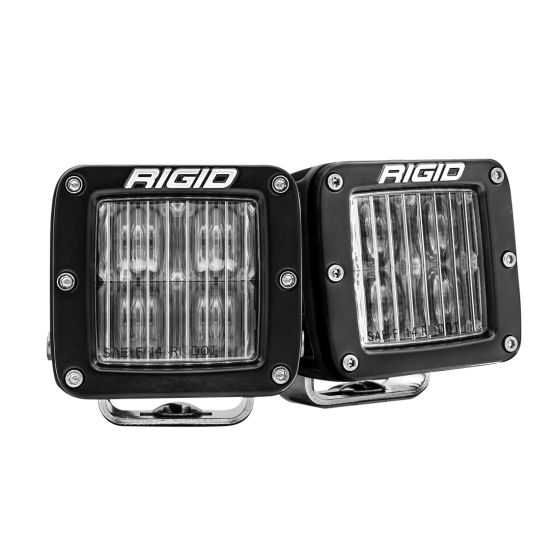

Rigid Industries D-Series Pro SAE Fog LED Pods – Surface Mount (Part #504815)
Rigid Industries D-Series Pro SAE Fog LED Pods – Surface Mount (Part #504815)
✔ Free Ground Shipping over $100
🔒 Safe, Encrypted Payments
↩️ Easy Returns Within 30 Days
🕒 Ships Same Day if ordered before 2pm MST
🏁 Trusted, Customer-Approved Seller for our Aftermarket Brands
🚚 Free Ground Shipping on Orders over $100
Couldn't load pickup availability
Go street-legal with Rigid’s D-Series Pro SAE Fog LEDs (Part #504815). 3,445 lumens, crisp 60.5° beam, perfect for fog, rain, or snow. IP68 rated and made in the USA.
Upgrade your vehicle’s legal road lighting with the Rigid Industries D-Series Pro SAE Fog Surface Mount LED pods (Part #504815). Engineered for maximum performance while remaining street-legal, these compact 3” x 3” LED pods are fully SAE J583 compliant for use as fog lights on public roads.
Each D-Series Pro SAE Fog light outputs 3,445 raw lumens with a controlled 60.5° horizontal beam angle, providing crisp, clean white light that cuts through fog, rain, and snow without blinding oncoming drivers. Unlike typical off-road-only lights, these pods are designed for safe on-road use while still delivering the rugged durability Rigid Industries is known for.
The beam reaches up to 137 meters (449.5 feet) at 1 lux, offering outstanding near- and mid-range visibility crucial for foggy or adverse weather conditions. Despite the powerful output, the lights remain efficient, drawing only 40 watts and 2.86 amps per pod.
Encased in a black powder-coated aluminum housing, the D-Series Pro SAE Fog lights are IP68 rated for dust and water protection and tested to withstand the harshest off-road environments. Their surface mount design ensures easy installation on trucks, UTVs, Jeeps, and custom builds.
Backed by Rigid’s limited lifetime warranty and proudly made in the USA, the D-Series Pro SAE Fog Surface Mount LED pods (Part #504815) deliver race-proven quality while keeping you street legal.
Tech Specs
| Specification | Details |
|---|---|
| Part Number | 504815 |
| Size | 3″ x 3″ |
| Weight | 1.80 lbs |
| Optics | SAE Fog |
| Raw Lumens | 3,445 lm |
| Wattage | 40 W |
| Amp Draw (@14V) | 2.86 A |
| Lux @ 10 meters | 187.7 lux |
| Beam Distance @ 1 lux | 137 meters (449.5 ft) |
| Beam Distance @ 0.25 lux | 274 meters (899 ft) |
| Peak Beam Intensity | 18,770 cd |
| Horizontal Beam Angle | 60.5° |
Features:
- SAE J583 compliant for legal on-road fog light use
- Crisp white beam for improved visibility in fog, rain, and snow
- Surface mount design for flexible installation
- Black powder-coated aluminum housing
- IP68 dust and water resistance
- Shock and vibration resistant
- Compact size ideal for tight spaces
- Made in the USA
- Limited Lifetime Warranty
Light up the road with confidence using the Rigid D-Series Pro SAE Fog Surface Mount LED pods (Part #504815), blending race-proven durability with street-legal performance.
-
Are the Rigid D-Series Pro SAE Fog lights street legal?
Yes! The D-Series Pro SAE Fog lights (Part #504815) are fully SAE J583 compliant, making them legal for on-road use as fog lights in most states. Always check your local regulations.
-
How bright are the SAE Fog lights compared to non-SAE lights?
They produce 3,445 raw lumens per light, offering excellent visibility without excessive glare. SAE compliance means they’re designed not to blind oncoming traffic.
-
Can these lights handle off-road use?
Absolutely. While street legal, the SAE Fog lights are built rugged and carry the same IP68 and vibration resistance as Rigid’s off-road lights.
-
What is the beam pattern on these lights?
The beam has a 60.5° horizontal spread, optimized for fog and adverse weather conditions while staying compliant for on-road use.
-
Do these lights come as a pair?
Yes. This listing includes a pair of lights (two lights), plus hardware and wiring unless noted otherwise.
-
Are these lights waterproof?
Yes! They’re fully IP68 rated for dust and water protection, perfect for both on-road and off-road conditions.
-
Where are Rigid D-Series Pro SAE Fog lights made?
They’re proudly made in the USA and backed by Rigid’s limited lifetime warranty.
