Warn M12 12V Heavyweight Winch - 17801 - 97720

WARN M12 Heavyweight Winch | 12,000 lb Pulling Capacity | Heavy-Duty Electric Truck Winch

Heavy-Duty Winch for Full-Size Trucks, Off-Road Vehicles & Work Applications

When serious pulling power is non-negotiable, the WARN M12 Heavyweight 12V Electric Winch delivers strength, durability, and performance. Engineered for big trucks, off-road builds, and recovery vehicles, the WARN M12000 Winch boasts a massive 12,000 lb (5,440 kg) single-line pulling capacity and heavy-duty construction for the heaviest winching demands.

This rugged WARN truck winch features a large-frame design, powerful series-wound motor, and a smooth, efficient 3-stage planetary geartrain, providing fast line speeds and consistent pulling performance under extreme load. The included 125' of 3/8" wire rope gives you reach and versatility in tough recovery scenarios — whether winching out of deep mud, navigating off-road trails, or handling heavy worksite applications.

Key Features:

✅ 12,000 lb (5,440 kg) single-line pulling capacity — For full-size trucks, Jeeps, SUVs, and off-road rigs

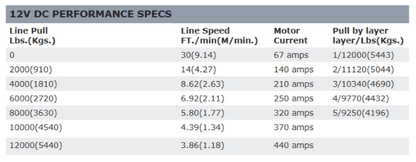

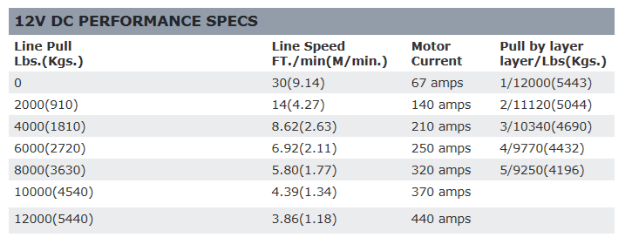

✅ Max Line Pull / Line Speed — 12,000 lbs. at 3.86 feet per minute
✅ Series-wound, high-speed motor — Provides fast line speed and strong, reliable pulls
✅ Durable 3-stage planetary geartrain — Ensures smooth operation and long-term reliability
✅ Brake system — Delivers control while winching under load
✅ Remote-mount control box — Allows for flexible installation options
✅ Remote control with 12' (3.7m) lead — Safe, convenient operation at a distance
✅ Chip-resistant powder-coated finish — Built to withstand harsh off-road and work environments
✅ 125' of 3/8" (38m of 9.5mm) diameter wire rope — Tough and abrasion-resistant
✅ Mounting hardware included (winch mount not included)
✅ Limited Lifetime Warranty on mechanical components
✅ Limited 7-Year Warranty on electrical components

Built for Serious Off-Road & Worksite Applications

The WARN M12 Heavyweight Off-Road Winch is purpose-built for demanding applications where maximum pulling capacity and reliability matter most. Ideal for:

• Heavy-duty off-road recovery

• Full-size truck winching

• Utility and work vehicles

• Industrial and fleet use

• Overland expeditions

• Professional recovery operators
