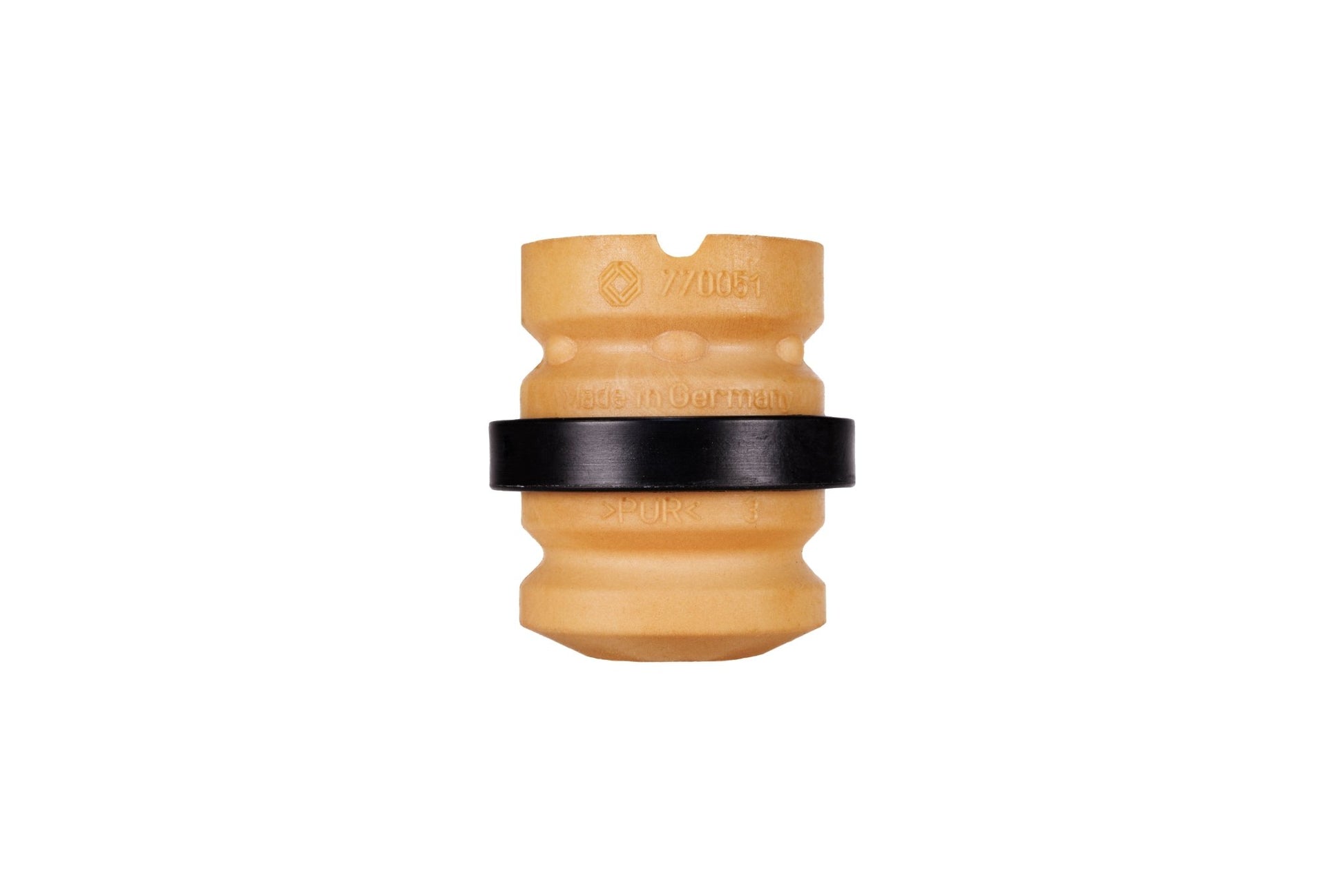

Eibach Bump stop 0.91ID 2.72in Tall

Eibach Elastomeric Bump Stop | 0.91in ID | 2.72in Length | 976 lb/in Rate

Progressive Bottoming Control for Precision Suspension Tuning

The final inches of suspension travel are where performance meets control — and where the Eibach Elastomeric Bump Stop proves its worth. Designed to deliver progressive bottoming control, this bump stop ensures your suspension transitions smoothly into full compression, protecting components while maintaining vehicle composure under load.

Manufactured from Eibach’s race-proven micro-cellular polyurethane elastomer, this component acts as a secondary spring, engaging progressively to absorb impact energy without harshness. The result is predictable, repeatable suspension performance whether you’re tuning a track-ready road car, off-road pre-runner, or custom coilover setup.

Engineered with a 0.91-inch inner diameter, 2.72-inch overall length, and a 976 lb/in rate, the Eibach EBS770051 provides firm yet controlled engagement across a wide range of suspension systems.

Engineered for Real-World Demands

This isn’t just a bump stop — it’s a precision energy management device. Eibach’s micro-cellular elastomer material combines lightweight flexibility with the structural consistency needed to handle repeated compression cycles. Each bump stop undergoes laboratory and motorsport testing to ensure consistent durometer, rate accuracy, and recovery speed.

With near-zero lateral expansion, this design minimizes deflection off-axis, maintaining true vertical compression and protecting shock shafts and seals from uneven loads. Whether you’re running through desert whoops or late-braking into a hairpin, Eibach’s elastomeric bump stops absorb impact forces efficiently while maintaining control through rebound.

Technical Specifications

Key Features

• Progressive Bottoming Control: Smooth engagement curve absorbs energy predictably.

• Secondary Spring Function: Enhances control without affecting normal suspension stroke.

• Micro-Cellular Elastomer Composition: Superior energy absorption with controlled rebound.

• Minimal Lateral Expansion: Maintains proper shock alignment and reduces wear.

• Motorsport-Tuned Construction: Ideal for track, off-road, and performance street applications.

• Wide Range of Compatibility: Integrates with coilover, bypass, or OEM-style suspensions.

• Lightweight and Durable: Resistant to oil, heat, and UV degradation.

• Precision-Crafted by Eibach: Trusted globally for advanced suspension components.

The Role of Progressive Bottoming Control

Bottoming out isn’t just about impact — it’s about managing how energy is dissipated when your suspension reaches its limit. The Eibach Elastomeric Bump Stop works like a progressive damper, ramping up resistance gradually rather than hitting a hard stop.

This smooth transition prevents shock piston damage, reduces harsh feedback through the chassis, and stabilizes the vehicle during high-speed or heavy-load conditions. In motorsport and off-road tuning, this means better wheel control, faster recovery, and longer shock life — all without compromising total travel or ride comfort.

When properly matched to your main spring and shock setup, this bump stop effectively becomes part of your suspension tuning toolkit — allowing you to fine-tune end-stroke resistance and improve handling predictability at the limit.

Installation and Setup

Installation is straightforward and application-specific. The 0.91-inch inner diameter fits most shock shafts and bump can applications with matching mounts. Simply verify shaft diameter and available compression clearance before installation.

For coilover setups, pair with an appropriate bump stop seat or canister retainer to ensure proper alignment and contact during compression. When installed correctly, the Eibach bump stop will engage progressively without coil bind or premature bottoming.

⚙️ Setup Tip:
Fine-tune engagement timing by adjusting shock stroke or mounting depth. For softer end-stroke response, engage the bump stop earlier. For maximum travel with sharper engagement, set it later in the compression cycle.

Tested, Trusted, and Proven

Every Eibach elastomeric bump stop is manufactured under ISO 9001 and TÜV-certified standards, ensuring consistent performance across thousands of compression cycles. The result is a tuning component that offers precise load control and reliability worthy of professional-level use.

From road course suspension tuning to full desert race applications, Eibach’s bump stops are proven to withstand heat, fatigue, and constant motion while maintaining predictable engagement characteristics.

This same attention to detail and performance engineering is what makes Eibach a world leader in suspension development — and why Fenix Motorsports proudly carries their components.

The Fenix Motorsports Advantage

At Fenix Motorsports, every component we sell is battle-tested — on the street, in the dirt, and at the track. Our team evaluates each part’s real-world performance before it earns a place in our catalog. Eibach’s bump stops are no exception — they deliver consistent, measurable results in progressive bottoming control and chassis protection.

• Trusted by builders, racers, and performance shops nationwide

• Expert guidance for selecting the correct bump stop rate and dimensions

• Fast shipping and hands-on customer support

• Proven products from Eibach, a global leader in suspension innovation

Why Buy from Fenix Motorsports

When you buy from Fenix, you’re not just buying components — you’re buying confidence. We stand behind every Eibach product because we use them ourselves. Whether you’re chasing performance gains, better ride control, or tuning precision, our focus is helping you achieve real results.

Fenix Motorsports — Performance Driven Since 2021.
