Low stock (1)
SKU:BRG999067
Borgeson 63-66 Chevy C10 Quick Ratio Conversion Kit (999067)
Borgeson 63-66 Chevy C10 Quick Ratio Conversion Kit (999067)
✔ Free Ground Shipping over $100
🔒 Safe, Encrypted Payments
↩️ Easy Returns Within 30 Days
🕒 Ships Same Day if ordered before 2pm MST
🏁 Trusted, Customer-Approved Seller for our Aftermarket Brands
🚚 Free Ground Shipping on Orders over $100
Couldn't load pickup availability

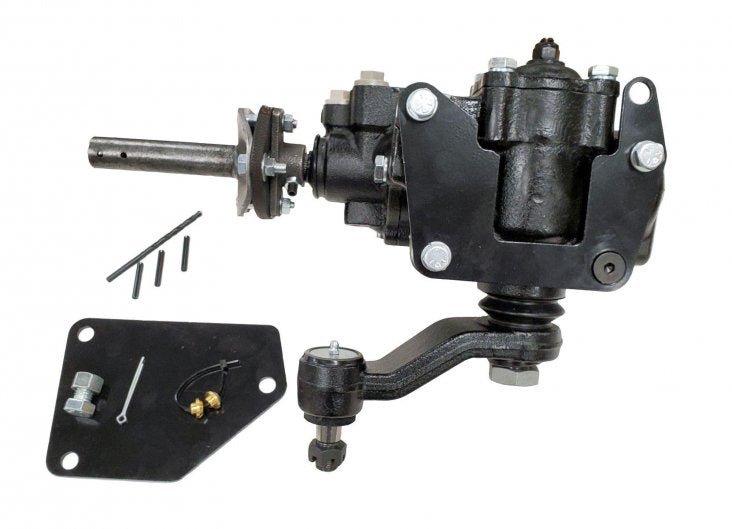

Steering Box - Power - 12.7 to 1 Ratio - 1-1/4 in Pitman Shaft - Brackets - Pitman Arm Included - Iron - Black Paint - GM Fullsize Truck 1963-66 - Each
Featuring the Borgeson Street & Performance Quick Ratio Chevy C10 Power Steering Box, this kit includes everything needed to install our Quick Ratio C10 power steering box on the 63-66 Chevy C10 Trucks. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel. This kit will bolt directly to the stock location with the included brackets and includes a new pitman arm and steering column coupler for a complete installation. All Borgeson power steering boxes are assembled and tested in the USA from globally sourced components and have a 3 year warranty. WARRANTY
Input Shaft: 3/4"-30 Spline
Pitman Shaft: 1-1/4" GM with 32 Splines and 4 Master Splines
Pressure Port: M18 X 1.5 O-Ring or 11/16"-18 Flare, if using included flare inserts
Return Port: M16 X 1.5 O-Ring or 5/8"-18 Flare, if using included flare inserts
Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
